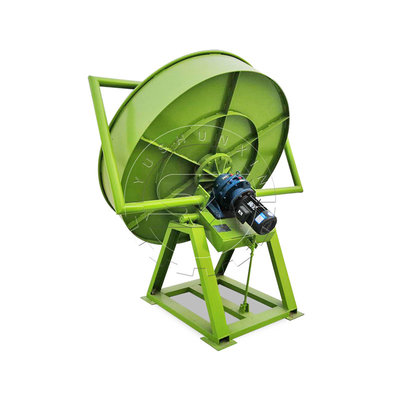

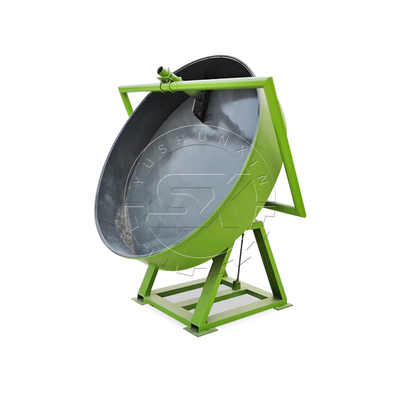

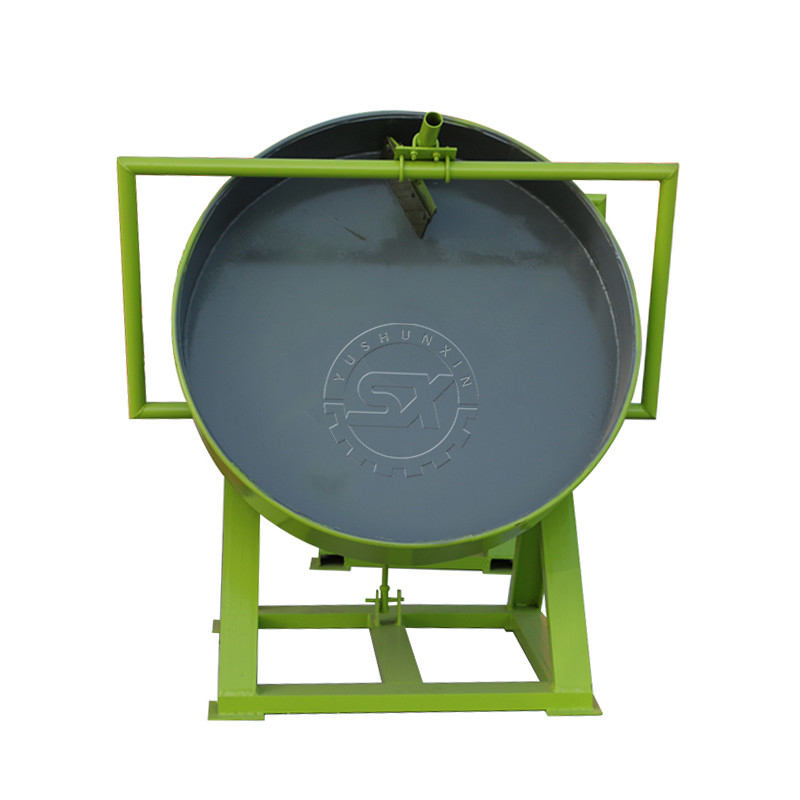

Pan disc granulator production line to make npk compound fertilizer

Pan disc granulator production line to make npk compound fertilizer
Pan disc granulator production line to make npk compound fertilizer Pan disc granulator production line to make npk compound fertilizer Pan disc granulator production line to make npk compound fertilizer Pan disc granulator production line to make npk compound fertilizer Pan disc granulator production line to make npk compound fertilizer Pan disc granulator production line to make npk compound fertilizer

Large Image :  Pan disc granulator production line to make npk compound fertilizer

Product Details:
Place of Origin: China
Brand Name: Shunxin
Model Number: SXYZ-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 30 days
Payment Terms: L/C, Western Union, T/T
Detailed Product Description
Features: Durable, Long Service Life Product Name: Disc Granulator
Type: Pan/ Disc /Disk Fertilzier Machine Application: Fertilizer Pellet Making Machine
Material: Steel Final Product: Round Granule
Suit For: Organic And Compound Fertilizer Material Function: Making Fertilizer Particle
Color: Green/Red/ Yellow/Gray Capacity: 1.2-1.5 T/h
Warranty: 1 Year

_01



Product Description

*new type disc granulator machine, it is an ideal equipment for organic fertilizer and compound fertilizer.
*the granulation rate is up to 95% or more.
*The main gear of the granulator adopts high frequency quenching and doubles the service life.
*the disk lined with high-strength glass fiber reinforced plastic, the bottom of the plate with a number of radiation plate to strengthen, so the disc will be durable and never deformation.



Raw Materials
Agricultural waste : Straw,dregs of beans,cotton dregs,rice bran,etc
Livestock/human waste: Mixture of poultry litter(PL) and livestock/animal/human waste,slaughterhouse waste,fish maket,urine and dung of cattle,pigs,sheep,chicken,ducks,geese,goat,etc
Industrial waste: Wine lees,vinegar residue,manioc waste,sugar scum,furfural residue,etc
Home scrap: Food waste,bones,the roots and leaves of vegetables,etc
Mineral: Humic acid,bentonite,dolomite,etc
Others : Sludge of the rive,the sewer,etc

Raw Materilals of Compound fertilizer :It can granulate NPK, NP, ANP, DAP, MAP, CAN, SSP and other materials into compound fertilizer particles.

_03 (2)

Technical Parameter

Factory price wet type disc granulator for compound and organic fertilizer

Model Diameter(mm) Edge Height(mm) Rotary Speed(r/min) Motor Power(kw) Capacity(t/h) Model of Reducer(KW) Dimensions (mm)
SXYZ-1200 1200 250 21 1.5 0.3-0.5 XWD4-71-1.5 1200*1470*1700
SXYZ-1500 1500 300 21 3 0.5-0.8 XWD5-71-3 1750*1500*19500
SXYZ-1800 1800 300 21 3 0.8-1.2 XWD5-71-3 2060*1700*2130
SXYZ-2000 2000 350 21 4 1.2-1.5 XWD5-71-4 2260*1650*2250
SXYZ-2500 2500 450 14 7.5 1.5-2.0 ZQ350 2900*2000*2750
SXYZ-2800 2800 450 14 11 2.0-3.0 ZQ350 3200*2200*3000
SXYZ-3000 3000 450 14 11 2.0-4.0 ZQ350 3400*2400*3100
SXYZ-3600 3600 450 13 18.5 4.0-6.0 ZQ350 4100*2900*3800

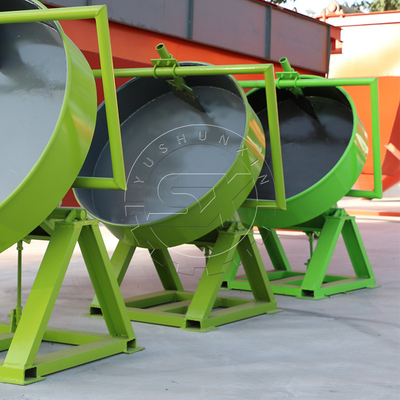

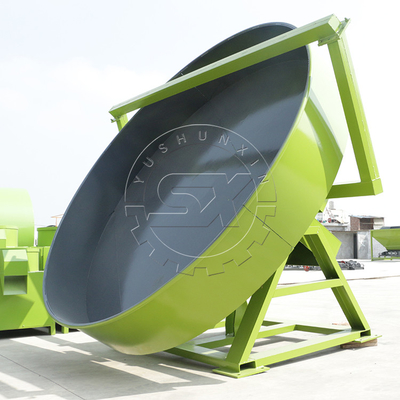

Detailed Images

Factory price wet type disc granulator for compound and organic fertilizer

Working Principle
By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.

_09

Characteristics of Factory price wet type disc granulator for compound and organic fertilizer
1.High efficiency.
2.Long service life.
3.The plates are reinforced with a number of radiant steel plates, which are durable and never deformed.
4.The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
5.There is high strength fiberglass in the granulation pan making the machine durable.
6.Uniform granulation, high granulation rate, stable operation, durable equipment and long service life

_11

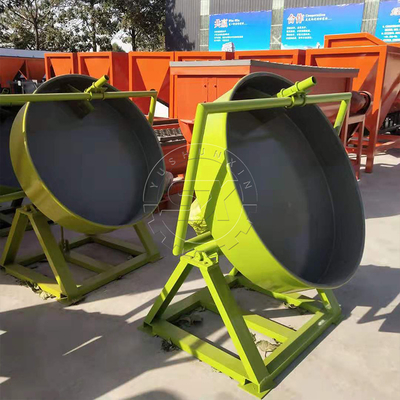

Dis granulator in fertilizer production line

disc granulator

Related Products

granulator machine

Company Information

Zhengzhou Shunxin Machinery EquipmentCo., Ltd

Our company's main business projects are the installation and production of fertilizer equipment, extrusion equipment, granulation equipment, drying equipment, mechanical equipment and accessories, and the design and construction of fertilizer engineering. Our equipment is complete in specifications and quality, and all indicators meet or exceed national standards. Our products are popular both at home and abroad. Our company have realized one-stop service for design, manufacture, installation, debugging, technical training.

factory

Packaging & Shipping

1.Small machine and spare parts packed in wooden box. Also could packing according to customers' requests.
2. Production line or large quantity packed 20ft container/ 40ft container The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

delivery 00

Our Services

* Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
* Manufacturing: High quality raw material purchasing, and strictly controlling for the machine production, to ensure our product quality can meet your demand
* Installation: we can send our engineer to your place to instruct the installation, to train your employees, to commission the line until they can work normally.
* Guarantee and after sales service: We provide the one year no man-made guarantee and lifelong technical supports. Within the guaranty, we shall replace the parts( except the vulnerable parts) for free.

case 01

Customer visit

customer 01Factory price wet type disc granulator for compound and organic fertilizer , if you have any demand about the fertilizer machine and fertilizer production line, please contact me freely!
